Mofo RC | ROP 3400Kv Brushless Pancake Motor/Reaper ESC/Mount + Transmission Combos (for Axial® SCX24™/AX24™)

The Mofo RC "ROP" Revenge Of Pancake 3400Kv Brushless Motor delivers exceptional speed and power, featuring twice the RPM of the SMP motor. Engineered for those who demand kick-in-the-pants performance, it offers ultra-smooth low-end torque alongside a powerful surge at high speeds, making it the ideal choice for maximizing your crawler's acceleration and power. Perfect when paired with our Reaper ESC.

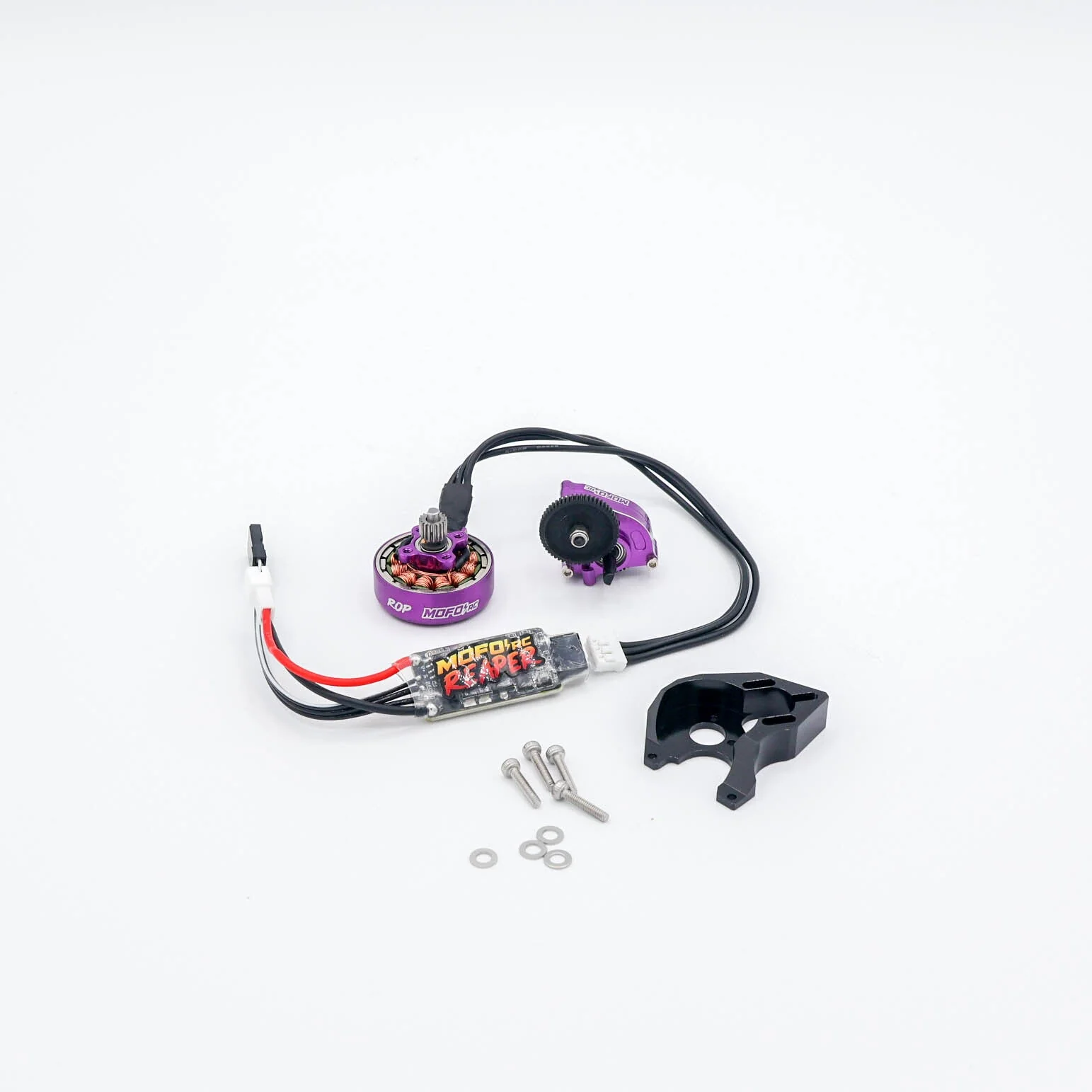

Includes

• Mofo RC | ROP Motor with/without pinion of choice

• Mofo RC | 12mm Aluminum Forward Facing Motor Mount
• Mofo RC | Pre-programmed Reaper 30A ESCape 32 ESC
  • Note: The ESC has our default settings for this motor, but you may want to change them depending on your setup.

• Mofo RC | Aluminum or Brass BulletProof Transmission- No Motor Mount Version
  • Includes both Mod.3 and Mod.5 Spur Gears

Gear Options

• Mod.3
  • 18t Pinion Gear- Most Popular

• Mod.5
  • 11t Pinion Gear

Specs and Dimensions

KV	3400
Voltage	2-3s Lipo
Poles	14 Pole, 12 Slot
Stator Diameter/Length	20mm x 4mm
Shaft Diameter	3mm w/Flat Spot (Accepts Press-Fit or Set-Screw Pinions)
Case Diameter/Length	25.6mm x 13.4mm
Weight	18 grams
Wire Length	160mm
Connector	Standard PH2.0 3 pin



Note: Due to the high KV, you will sacrifice some smoothness relative to the lower KV options we have like the SMP.
