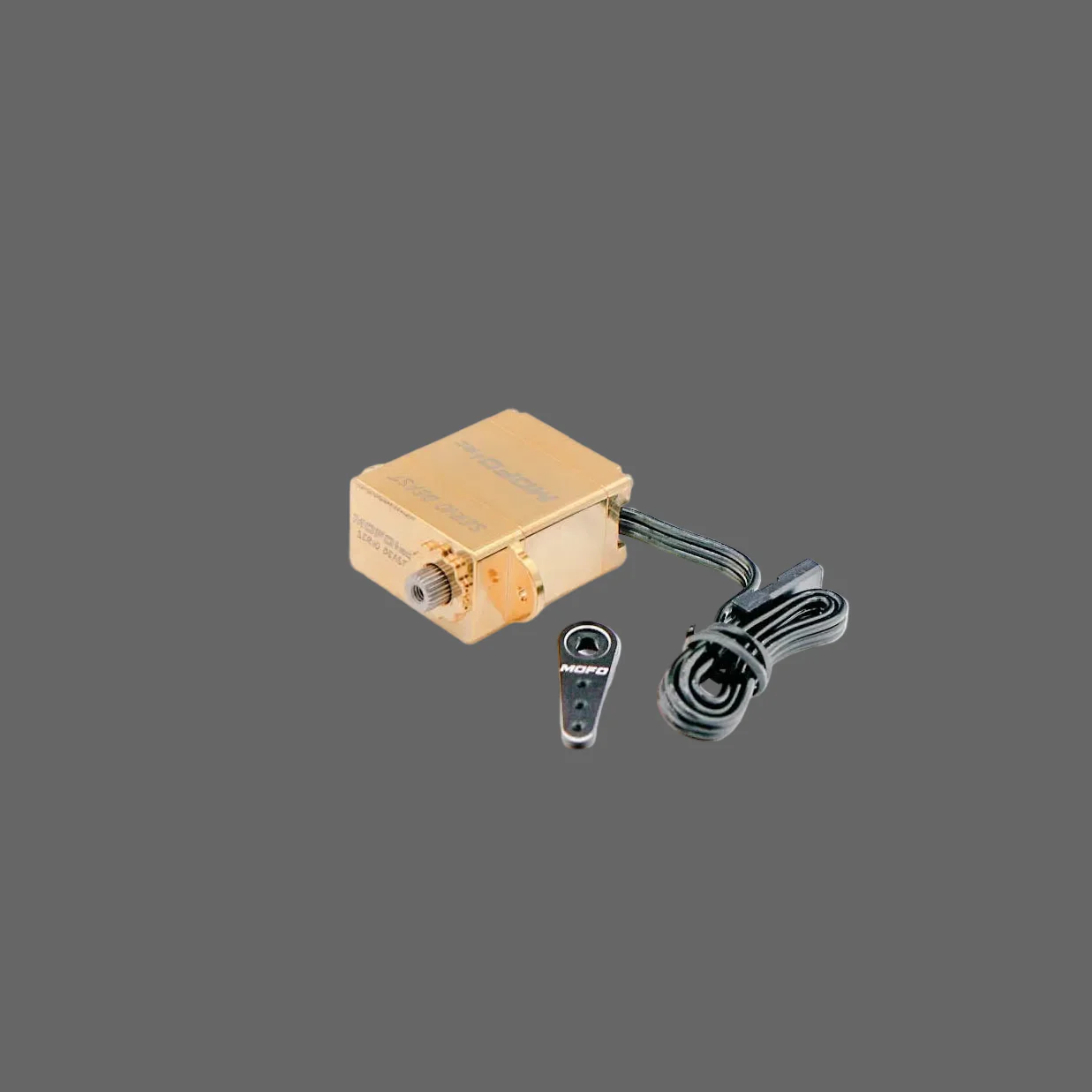

Mofo RC | Brass ServoBeast 2.0 Brushless Servo w/ Dual-Wire Exit

The Mofo RC ServoBeast is a literal beast. The absolute, strongest micro servo currently on the market, period. We previously underrated this servo by 30%! The true underdog servo, until now. It has a beautiful polished brass case. This servo now features our newest case design with a dual-exit wire harness. The case is designed so that the wire runs as a rear exit, but can also be ran out the side for vehicles that require it. The brass version also adds significant weight and is also the heaviest micro servo available.

Specs

• Case/Horn Material: Brass
• Gears: Hardened Steel
• Motor: Brushless
• Voltage Range: 4.8v-8.4v
• Water-Resistant- O-ring Sealed Case. Submarining is not covered by warranty.
• Rounded servo ears for extra frame clearance
• Mounting Holes: 1.4mm, Can easily be drilled out for other sizes
• Weight: 44g
• BEC: Recommended, but not required in every setup. May overwhelm some stock ESCs.
• Machined 7075 Aluminum Horn w/ M1.4 Threads included w/miscellaneous mounting hardware.

Voltage	Stall Torque	Operating Speed
4.8V	131 OZ-in (9.5KG-CM)	0.105 Sec/60*
6.0V	152 OZ-in (11KG-CM)	0.092 Sec/60*
7.4V	178 OZ-in (12.8KG-CM)	0.075 Sec/60*
8.4V	205 OZ-in (14.8 KG-CM)	0.068 Sec/60*

Dimensions

• Height: 31.6mm
• Width: 23mm
• Thickness: 13.4mm

Fits

• SCX24
  • Mofo RC | BSME Servo Mount
• TRX4M
  • May need to drill out mounting holes to accommodate larger mounting screws.
  • Included horn will also need to have holes enlarged to 2.5mm or use an alternate horn.
• Redcat
  • Needs a horn with 2mm or 2.5mm threads depending on model.
  • Thread size has changed over time
• FMS
  • May need an alternate servo horn depending on model.

GET REPLACMENT GEAR SETS HERE

Warranty

• 90 Day Warranty
• 1 Year Warranty on Gears
• Must return for inspection
